Discontinued

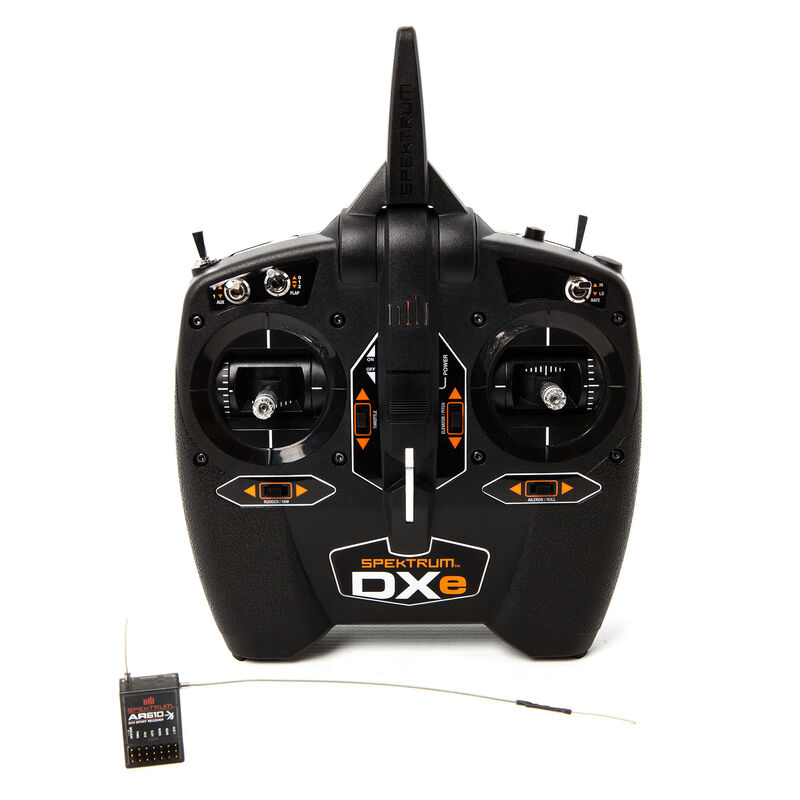

DXe DSMX Transmitter with AR610

Spektrum - Item No. SPM1000
4.4 out of 5 Customer Rating
DXe TX System with AR620
DXe TX System with AR620
SPM1005
View Alternate Product Details
Spektrum DXe transmitter left facing shot

Point and Click Programming

If you've ever managed a music library on your PC or smart phone, you can program the DXe. All you need is the free Spektrum programming app or software and a Spektrum programming cable (sold separately). Using this interface you can create and save basic model setups with different settings for:

  • Servo Reversing
  • Stick Configuration: Modes 1-4
  • Wing Type: Normal or Delta/Elevon
  • Expo: On or Off

For advanced programming features such as stick configuration, wing type selection, expo on/off function, model setup import and many more, the Spektrum programming cable (SPMA3081-Mobile, SPMA3065- PC) is required. Basic programming features such as servo reversing and trim adjust can be used without the programming cable.

Once saved to your PC or mobile device, you can upload the setup for a specific model to the DXe with a simple point and click.

You can also use the interface to upload pre-programmed setups for Bind-N-Fly® aircraft.

Save and Transfer Model Setups

Save and Transfer Model Setups

Select Transmitter Mode and Battery Type

Select Transmitter Mode and Battery Type

Enable Trainer Function

Enable Trainer Function

Choose Normal or Elevon Wing Types

Choose Normal or Elevon Wing Types

Mobile Devices and PC Programming Options

app logo
app logo
app logo
Bind-N-Fly
AS3X
SAFE

More than Meets the Eye

While the DXe looks and functions like a basic 6-channel transmitter out of the box, it gives pilots the control functions they need to fly a wide variety of Bind-N-Fly aircraft using pre-programmed setups. Functions include:

  • Throttle, Aileron, Elevator and Rudder Channels
  • 3-Position Flap Switch
  • 2-Position Auxiliary Function Switch
  • 3-Position Flight Mode Switch for AS3X/SAFE-Equipped Aircraft
  • Bind/Panic/Return Home Button for SAFE-Equipped Aircraft

PRODUCT SPECS

Band
2.4GHz
Frame Rate
11ms, 22ms
Modulation
DSMX
Range
Full
Rate Positions
2 POS
Receiver
AR610
Resolution
2048
SD Card/Airware Capable
No
Telemetry
No
Transmitter (Tx) Battery Type
4 AA Alkaline
Type
Non-computer
