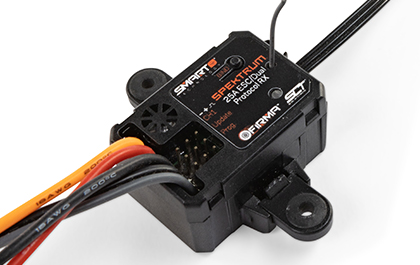

Firma 25A 2-in-1 Brushed Smart ESC/Dual Protocol RX

Spektrum - Item No. SPMXSER1025
3.3 out of 5 Customer Rating
Price reduced from $49.99 to $24.99
RC Club points earned on this item shown at checkout.
Complete Your Product
Upgrade your brushed motor equipped models to Spektrum Smart Technology with the Firma Smart 25A Brushed ESC + Dual Protocol Receiver. Get valuable battery and ESC telemetry data easily and in real-time right on your Smart-compatible Spektrum transmitter – including motor current, input voltage, remaining battery capacity and other information that will help a wide variety of RC drivers increase and extend battery life and run time. Clean and easy install with less wire mess in small confined small-scale vehicles.

(1) Firma 25A 2-in-1 Dual Protocol Brushed Smart ESC

(1) Product Manual

Smart all-in-one telemetry

Dual Protocol – compatible with SLT and DSMR Protocols transmitters

25 Amp continuous power / 70A burst – ideal for 1/16th mini and micro vehicles

Waterproof Design

Various Programming Options

(1) Spektrum Surface Transmitter

(1) 2S or 3S Lipo Battery with IC2 Connector

(1) 180-390 size Brushed Motor

Features

  • Smart all-in-one telemetry
  • Dual Protocol – compatible with SLT and DSMR Protocols transmitters
  • 25 Amp continuous power / 70A burst – ideal for 1/16th mini and micro vehicles
  • 2-3S LiPo Compatible
  • 5-9Cell NiMH Compatible
  • Waterproof Design
  • Multiple Protection points
  • Various Programming Options
    • Programming from Transmitter via Text Gen Telemetry
    • Smart ESC Programming Box
    • Push Button
  • Compact for easy installation
  • Ready to install – no soldering required
  • Firmware updatable

Overview

Upgrade your brushed motor equipped models to Spektrum Smart Technology with the Firma Smart 25A Brushed ESC + Dual Protocol Receiver. Get valuable battery and ESC telemetry data easily and in real-time right on your Smart-compatible Spektrum transmitter – including motor current, input voltage, remaining battery capacity and other information that will help a wide variety of RC drivers increase and extend battery life, and run time.

Smart Technology Equipped
Smart Technology Equipped

The Firma Smart 25A 2-in-1 Brushed ESC is ready to transmit valuable telemetry data using the latest advances in connectivity with Spektrum Smart Technology. Smart Technology ensures that all of your vehicle's electronics work together for the greatest efficiency and performance. It keeps you aware of every component's status and boosts your confidence in its capabilities, with no additional sensors or wires required.



Spektrum Dual Protocol
Spektrum Dual Protocol

This ESC and receiver combination is compatible with Spektrum DSM2®/DSMR®/SLT surface transmitters and includes built-in Smart telemetry. Use a Spektrum transmitter with Smart compatible telemetry to view ESC and battery data.

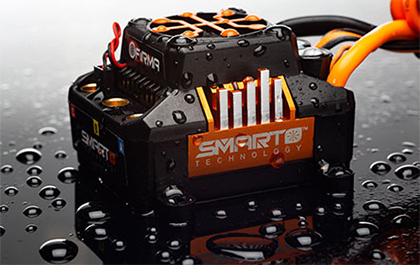

Waterproof Design
Waterproof Design

The all-weather, waterproof design of Spektrum Firma Smart ESCs allows them to perform in nearly any terrain under almost any conditions.

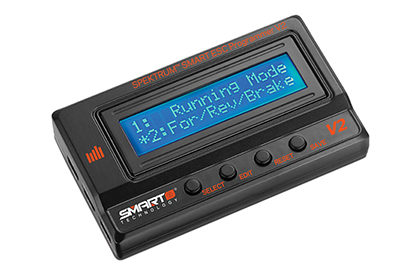

Programming Options
Programming Options

Multiple programming options are available. Using the Smart Firma ESC Programming Box, you can easily change settings to suit your driving conditions. For those with a Text Gen capable TX, programming and adjustment of ESC settings can be performed, right from your Spektrum transmitter, no additional modules or wires needed!



PRODUCT SPECS

Amperage
25A
Auto Cutoff
Yes
BEC
Yes
BEC Continous Current
1.5A
BEC Voltage
6V
Connector Type
IC2
Maximum Burst Current
70A
Maximum Continuous Current
25A
Motor Output Lead
4mm Female Motor Bullets
Motor Type
Brushed
Output Connector
4mm Bullet
Overload Protection
Yes
Programmable
Yes
Reverse
Yes
Technology
Dual Protocol RX (DSMR/SLT)
Water-Resistant
Yes
