Discontinued

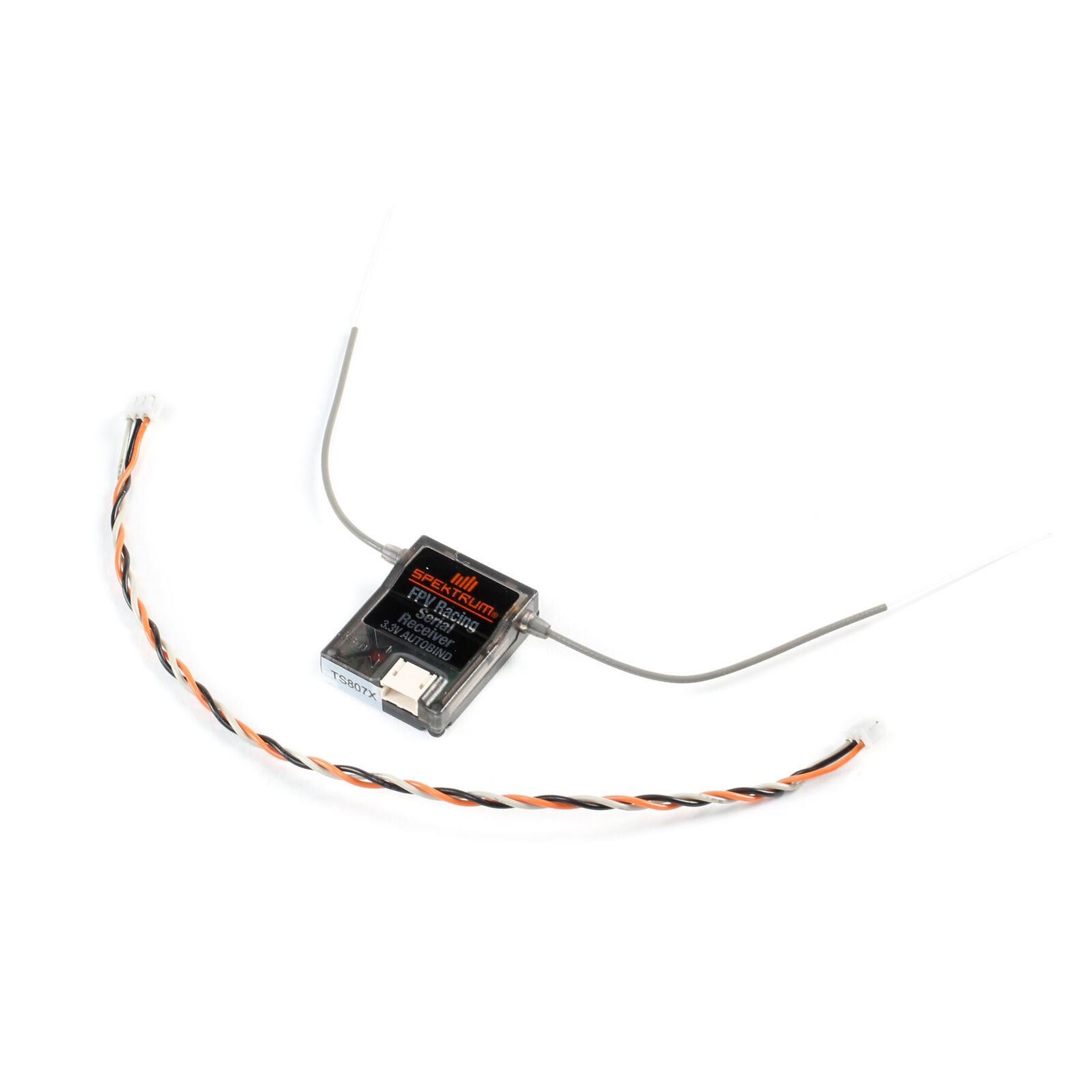

DSMX Quad Race Serial Receiver with Diversity

Spektrum - Item No. SPM4648
4.5 out of 5 Customer Rating
SRXL2 DSMX Serial Micro Receiver
SRXL2 DSMX Serial Micro Receiver
SPM4650
View Alternate Product Details

Key Features

  • Antenna Diversity
  • Auto-bind
  • Serial port supports SRXL or Remote/Satellite Receiver
  • 11ms speed with exceptional range and interference free operation
  • Weighs only 3 grams
  • Works with most flight controllers including the Naze32, CC3D, SP F3 and more*
  • *Requires SRXL or Remote/Satellite connection

Overview

The Spektrum DSMX Quad Race receiver provides a high speed serial data connection with up to 20 channels. It's small and lightweight providing an excellent receiver for even the smallest of applications. It also features Auto-Bind so you no longer need to carry a separate receiver to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal and batteries shield the antenna. And with Spektrum DSMX 2.4GHz RF protocol the Spektrum DSMX Quad Race receiver provides unsurpassed range and interference free performance for quad racing.

PRODUCT SPECS

Product Length
1.0 in (26mm)
Channels
20
Data Port
No
Band
2.4GHz
Input Voltage
3.3V
Product Height
0.3 in (8mm)
Resolution
2048
Failsafe
Yes
Product Weight
0.13 oz (3.6g)
Range
Full
Modulation
DSMX
Bind Method
Auto-Bind
Antenna Length
2.4 in (62mm)
Product Width
0.8 in (21mm)
