Discontinued

AR9030T DSMX 9-Channel Air Integrated Telemetry Receiver

Spektrum - Item No. SPMAR9030T
3.6 out of 5 Customer Rating
AR10100T DSMX 10-Channel Telemetry Receiver
AR10100T DSMX 10-Channel Telemetry Receiver
SPMAR10100T
View Alternate Product Details

Key Features

  • Compatible with all Spektrum DSMX® transmitters
  • Compact design fits most parkflyer size and larger aircraft
  • Capable of 11ms frame rates
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
  • Receiver pack voltage and flight log data available without the need for additional sensors
  • Dual antennas for optimal RF performance

Overview

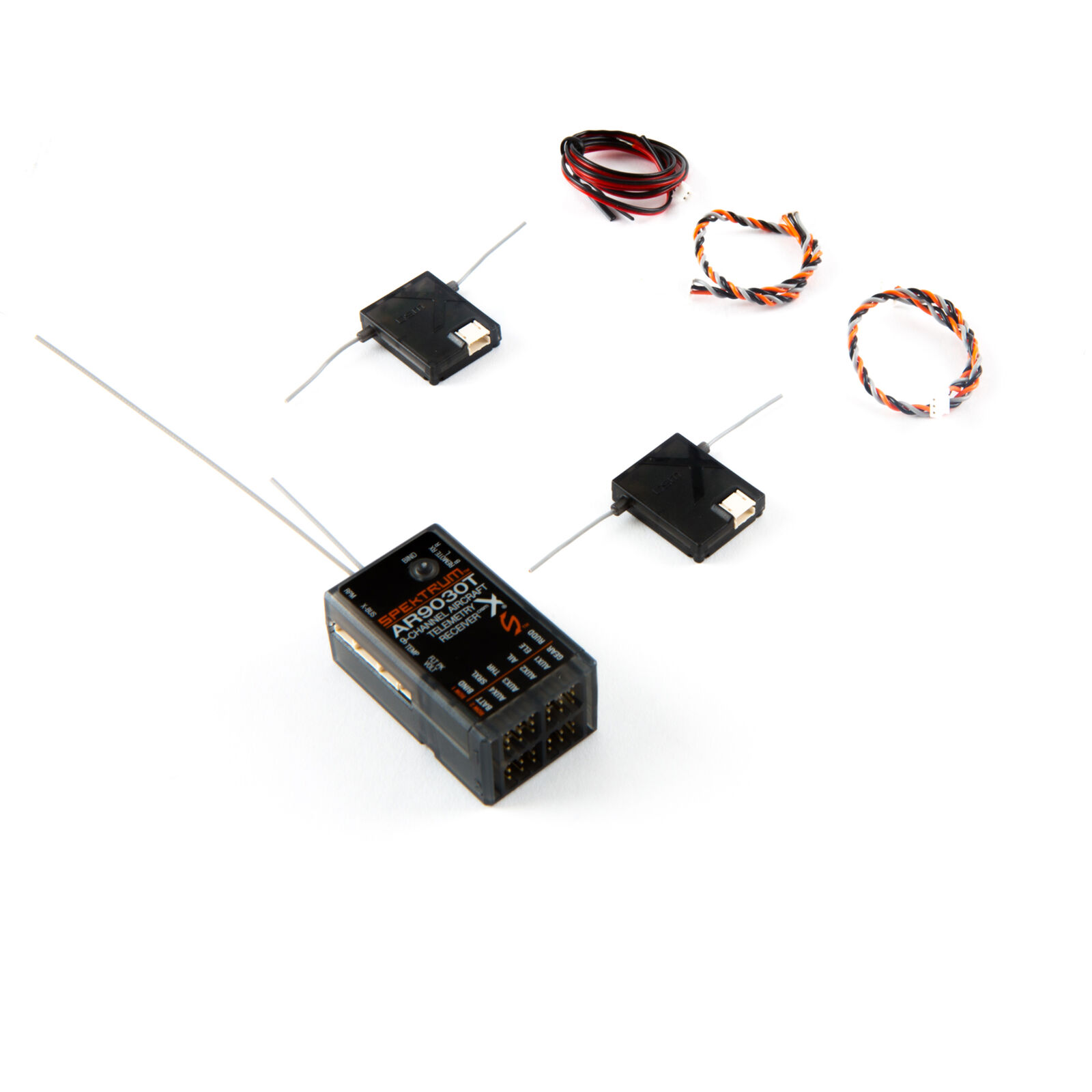

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX® remote receivers that allows you take advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

PRODUCT SPECS

Programmable
No
Channels
9
Data Port
Yes
Flight Log Compatible
Yes
XPlus Compatible
Yes
Bind Method
Bind Button
Range
Full
Product Length
1.91 in (48.5 mm)
Rev Limiter
No
Failsafe
Yes
Product Weight
0.63 oz (17.83 g)
Water-Resistant
No
Product Width
1.11 in (28.3 mm)
Telemetry
Yes
Modulation
DSMX
Band
2.4GHz
Input Voltage
3.5-9V
Product Height
0.82 in (20.9 mm)
Resolution
2048
