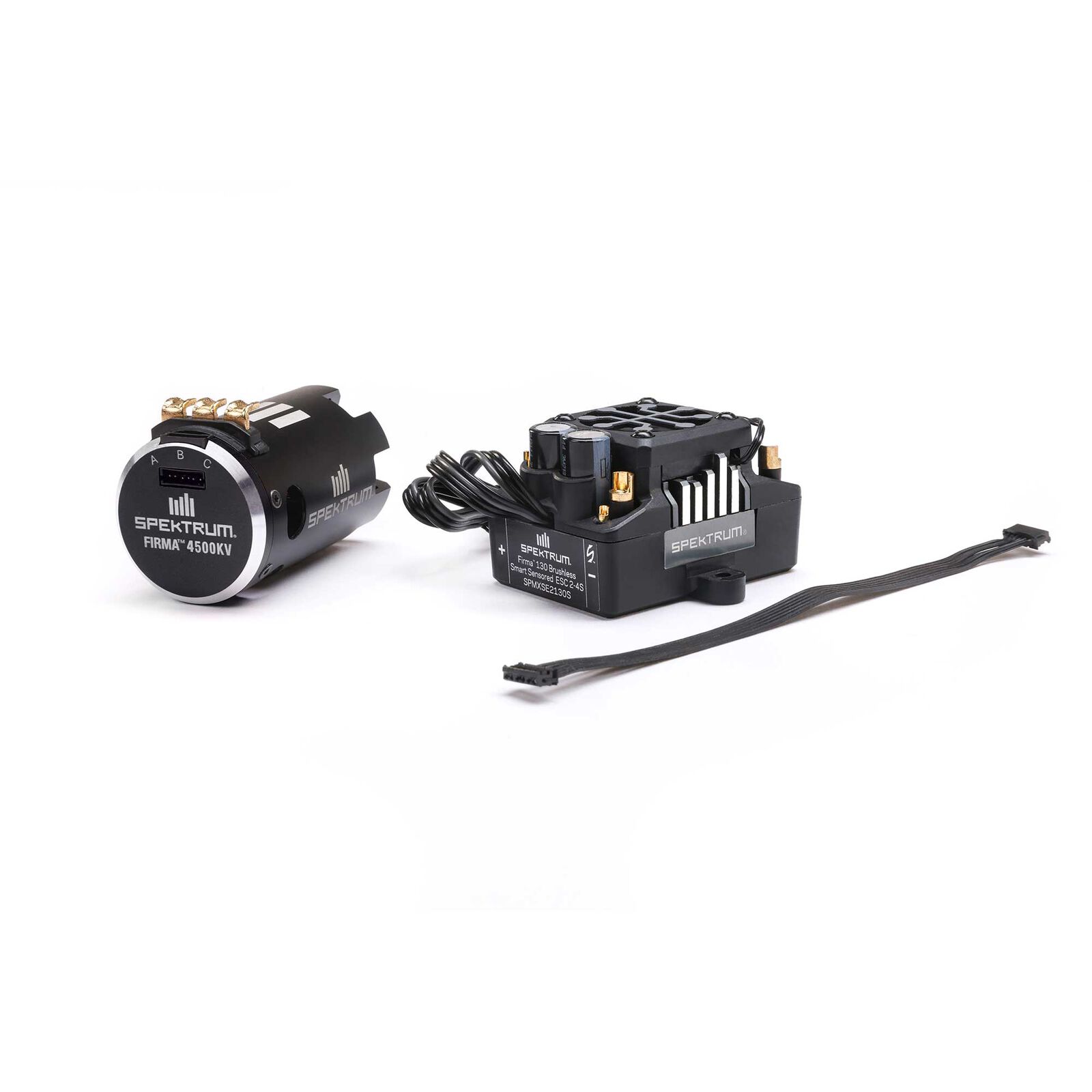

Firma 130A Brushless Smart ESC / 4500Kv Sensored Motor Combo

Spektrum - Item No. SPMXSEMC19
4.1 out of 5 Customer Rating
$319.99
RC Club points earned on this item shown at checkout.
The Spektrum™ Brushless ESC and Sensored Motor Combo is a great choice for 1/10th Scale Monster Trucks on up to 2S LiPo power. It features a high-precision magnetic encoder and rotor position sensor that provides excellent 1 to 1 control feel when driving at any speed and at any angle.

(1) Spektrum™ Firma™ Smart ESC

(1) Spektrum™ Firma™ 4500Kv Brushless Motor

(1) Spektrum Smart Sticker Sheet

(1) Product Manual

(1) Spektrum™ Surface Receiver

(1) Spektrum Smart Technology LiPo Battery

(1) Spektrum Transmitter

Overview

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you'll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

This ESC comes bundled with a Spektrum Firma 4500Kv Brushless Motor capable of handling everything this ESC can put out that is a perfect to get you driving with Spektrum Smart technology.

Features

  • Smart all-in-one telemetry
  • Fast, powerful 32-bit ARM M4 processor
  • Ready to install — no soldering required
  • Multiple options for easy programming:
    • Button programming
    • Smart ESC Programming Box
    • SmartLink USB Updating and Programmer application
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Developed and designed by Spektrum™ engineers in partnership with the industry's leading ESC manufacturer
  • Comes bundled with Spektrum Firma 4500Kv Brushless Motor
  • Compact for easy installation in most applications
  • Rugged plastic case with mounting tabs
  • Aluminum heat sink for high efficiency
  • Cooling fan
  • Adjustable high-power BEC
  • Firmware updatable through the Smart ESC Programming Box
  • High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
  • Limited 1-year warranty
EC3™/EC5™ BACKWARDS COMPATIBLE
EC3™/EC5™ BACKWARDS COMPATIBLE

Firma™ ESCs feature IC™ series battery connectors. The IC series of connectors are designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. When used with an IC5™ connector equipped Spektrum™ Smart battery, the ESC can receive and transmit battery telemetry data. EC3 and EC5 are also compatible with Firma ESCs for basic operation and ESC telemetry.

ONE-WIRE TELEMETRY
ONE-WIRE TELEMETRY

No need to connect multiple wires, sensors, modules, and links. With Firma™ ESCs, simple one-wire telemetry transmits a wide range of data directly to your transmitter in real-time, including RPM, voltage, temperature, balance, capacity, and speed.*

*See the compatibility chart for more information.

SMART TECHNOLOGY BATTERY DATA
SMART TECHNOLOGY BATTERY DATA

When used with a Spektrum™ Smart LiPo battery, your Firma™ ESC provides battery telemetry that's automatically transmitted to your compatible Spektrum radio in real-time. On your transmitter screen, you'll be presented with helpful information such as the number of cycles, battery percentage, individual cell voltage, and more!

MULTIPLE PROGRAMMING OPTIONS
MULTIPLE PROGRAMMING OPTIONS

Multiple programming options are available. Button programming can be used with nothing more needed. Using the Smart Firma™ ESC Programming Box, you can easily change settings at the track to suit driving conditions. An easy-to-use Smart Link USB Updating and PC Programmer app is also available.

FAST, POWERFUL M4 PROCESSOR
FAST, POWERFUL M4 PROCESSOR

The Firma™ ESCs' 32-bit M4 processor produces higher resolution signal input and more accurate motor output.

PRODUCT SPECS

Forward
Yes
Reverse
Yes
Maximum Burst Current
760A
Maximum Continuous Current
130A
Motor Type
Brushless Sensored
Speed Control
Included
Auto Cutoff
Yes
BEC Continous Current
5A
Low-Voltage Cutoff Programmable
Yes
Shaft Diameter
0.197" (5 mm)
BEC
Yes
BEC Voltage
6V or 7.4V
Input Voltage
7.4V
Motor Output Lead
Solder Tab
RPM/Volt (Kv)
4500Kv
Sensored
Yes
Shaft Length
0.728" (18 mm)
Battery Connector
Solder tabs (user installable IC5 lead included)
Battery Input Lead
None, IC5
Technology
Smart
Connector Type
IC5
ESC Type
Sensored Brushless
Brakes
Yes
Programmable
Yes
Amperage
120A or larger
