Discontinued

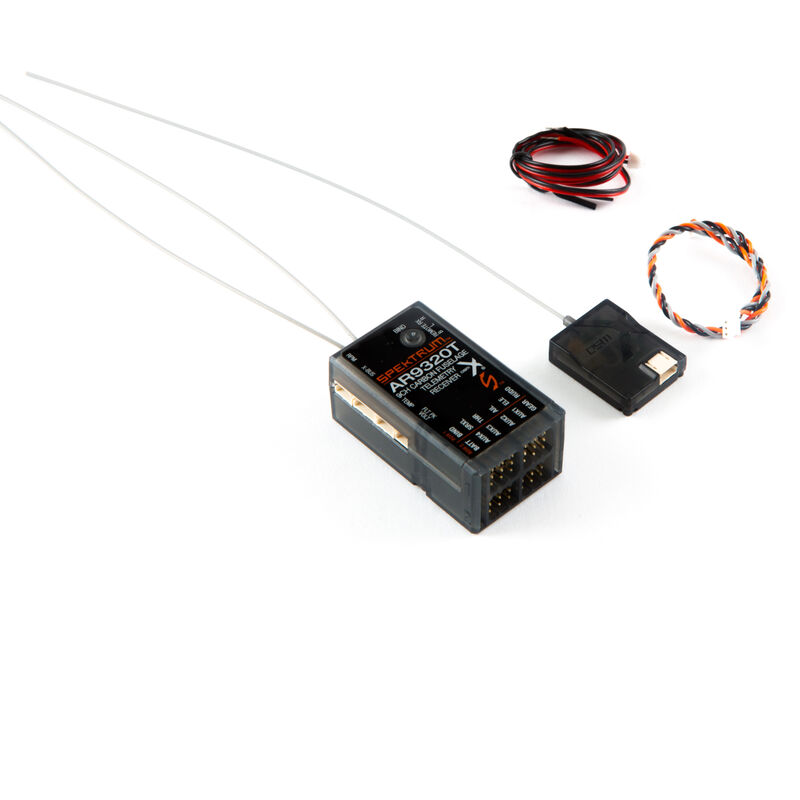

AR9320T 9-Channel Carbon Fuse Telemetry Receiver

Spektrum - Item No. SPMAR9320T
5 out of 5 Customer Rating

Key Features

  • Built-in variometer and altitude sensor
  • Compatible with all Spektrum® DSMX® transmitters
  • Compact design fits most parkflyer size and larger aircraft
  • Capable of 11ms frame rates
  • Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
  • Receiver pack voltage and flight log data available without the need for additional sensors
  • Dual antennas for optimal RF performance
  • Extended antennas designed for optimal performance with carbon fuselage aircraft

Overview

The AR9320T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9320T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data.

If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR9320T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9320T includes 1 DSMX carbon fuse remote receiver that allows you take advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

The AR9320T was designed specifically for carbon fuselage aircraft, and includes a special antenna design that overcomes RF limitations by allowing you to route the antennas through the side of the fuselage to the outside of the aircraft. The AR9320T also includes a built-in variometer sensor that automatically senses barometric pressure in order to determine rate of climb, and provides altitude above ground level (AGL) with no calibration required. This built-in variometer makes the AR9320T ideal for sailplane enthusiasts.

PRODUCT SPECS

Channels
9
Data Port
Yes
Flight Log Compatible
Yes
Modulation
DSMX
Product Weight
0.63 oz (17.83 g)
Water-Resistant
No
Telemetry
Yes
XPlus Compatible
Yes
Band
2.4GHz
Input Voltage
3.5-9V
Product Height
0.82 in (20.9 mm)
Resolution
2048
Failsafe
No
Product Length
1.91 in (48.5 mm)
Rev Limiter
No
Bind Method
Bind Button
Range
Full
Product Width
1.11 in (28.3 mm)
Type
AR9320T 9 Channel Carbon Fuse Telemetry Receiver
