Key Features
- 9.9V nominal voltage is specific to modern turbine engine ECU requirements without risking over-voltage, or the inconvenience of a failed start from a low 2S Li-Po pack
- High discharge capability (continuous 60A) makes the pack suitable for the high current draw of the turbine start sequence
- Long lifespan Li-Fe battery chemistry provides excellent working lifespan
- Convenient size is easy to place in a model and will provide up to 6 starts of todays modern turbine engines
Overview

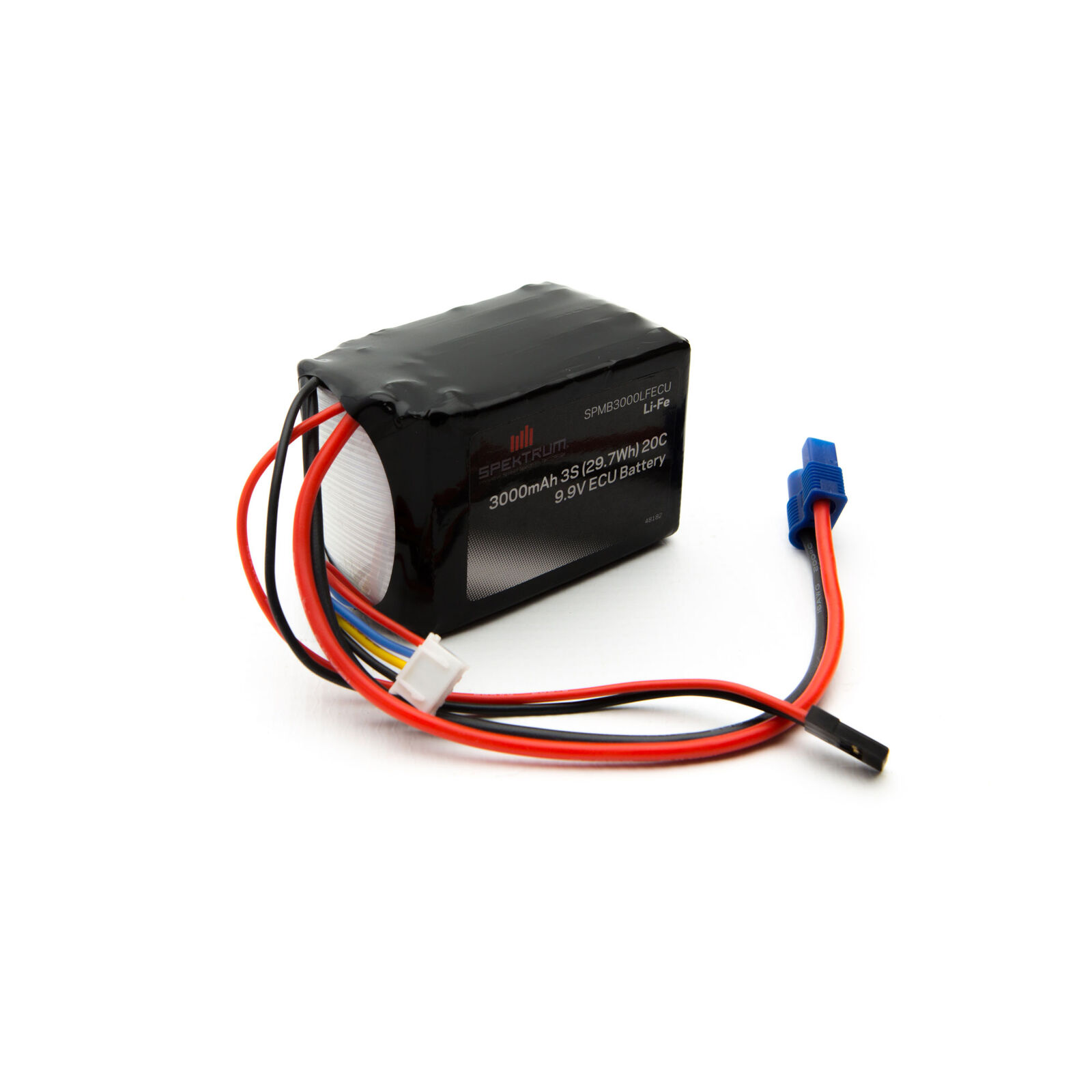

Spektrum's 3000mAh 3S ECU battery is a high-quality 9.9V Li-Fe battery designed specifically for turbine Electronic Control Unit (ECU) use. Today's turbine engines require reliable ECU power to ensure optimum performance from startup to shutdown.
PRODUCT SPECS
Battery Voltage
9.9V
Connector Type
EC3
Discharge Lead Length
5.91 in (150mm)
Maximum Charge Rate
1C
Product Length
2.91 in (74mm)
Application
Turbine Engine Electronic Control Unit (ECU)
Normal/Standard Charge Current
3A
Product Weight
9.6 oz (270g)
Watt Hours
29.7Wh
Maximum Charge Current
3A
Battery Balance Connector
JST_XH
Capacity
3000mAh
Maximum Continuous Discharge Current
60A
Normal/Standard Charge Rate
1C
Product Width
1.81 in (46mm)
Hard Case
No
Maximum Continuous Discharge Rate
20C
Product Height
1.73 in (44mm)
