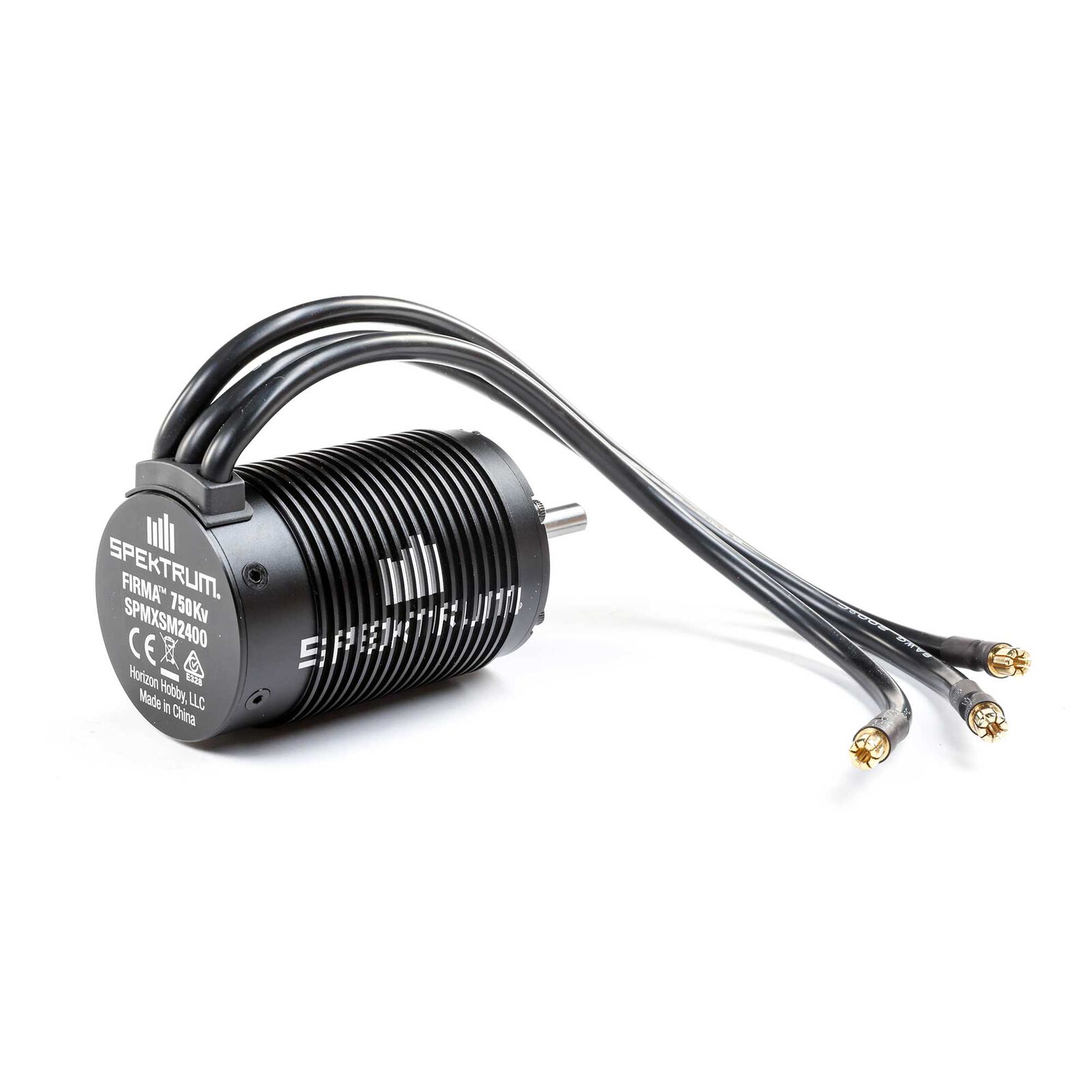

Firma 5687-750Kv 4-Pole Brushless Motor

Firma 5687-750Kv 4-Pole Brushless Motor

Spektrum - Item No. SPMXSM2400
5 out of 5 Customer Rating
$219.99
RC Club points earned on this item shown at checkout.
Complete Your Product

Firma 5687 - 750Kv 4-Pole Brushless Motor

4S LiPo Capable

Low Cog 4-Pole 8-Magnet Rotor Design

Alloy steel 8mm Output Shaft

150A ESC

Quick Links

Overview

The Firma 750Kv brushless motor is a perfect option for 1/6 scale buggies, truggies or monster trucks with 3S-6S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 8mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 150 Smart ESC.

Features

  • Perfect upgrade for 1/6 scale buggies, truggies or monster trucks running on 3-6S LiPo batteries.
  • High efficiency design
  • 4S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 6.5mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 8mm shaft

PRODUCT SPECS

Application
1/6 scale buggies, truggies or monster trucks with 3S-8S Lipo powered setup
Connector Type
6.5mm Bullet
Efficiency
87%
Input Voltage
3S - 8S LiPo
Maximum Continuous Current
80A
Motor Design
Inrunner
Motor Size
5687
Motor Type
Brushless
Number of Poles
4
Outer Diameter
2.2" (56 mm)
Output
3950W
Product Length
3.43" (87 mm)
Product Weight
2.08lbs (947g)
RPM/Volt (Kv)
750Kv
Sensored
No
Shaft Diameter
0.314" (8 mm)
