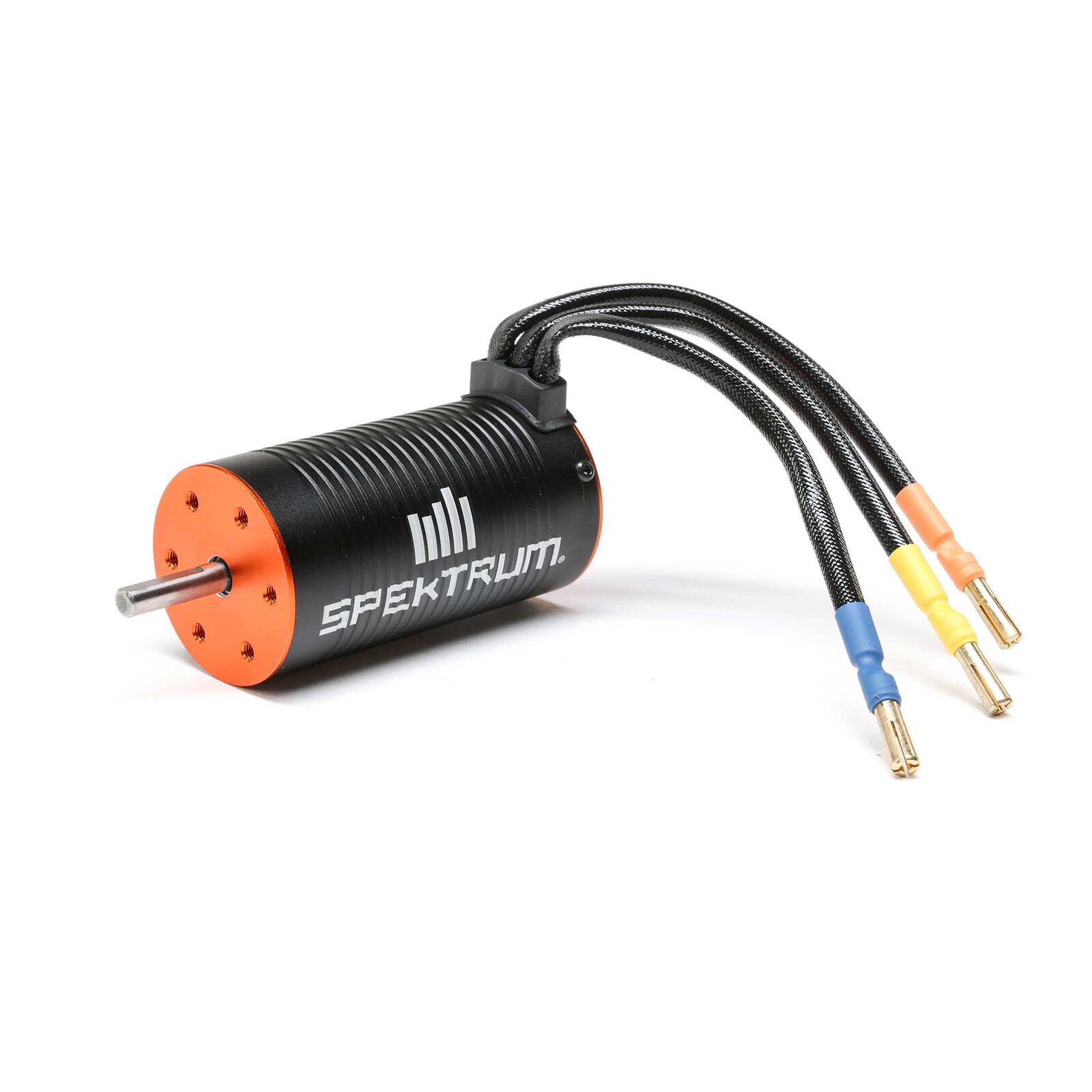

Firma 1900Kv 4-Pole Brushless Motor

Spektrum - Item No. SPMXSM2200
3.5 out of 5 Customer Rating
$68.99
RC Club points earned on this item shown at checkout.
Complete Your Product

Firma 1900Kv 4-Pole Brushless Motor

Low Cog 4-Pole 8-Magnet Rotor

CNC Machined Aluminum Housing

Alloy Steel 4mm Output Shaft

100A ESC

Overview

The Firma 1900Kv brushless motor is a perfect option for 1/10 scale buggies, truggies or monster trucks with 2S-4S Lipo powered setup. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 4mm output shaft, and precision bearings for high durability and smooth rotation. Preinstalled with 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 100 Smart ESC.

Features

  • Perfect upgrade for 1/10 scale buggies, truggies or monster trucks running on 2-4S LiPo batteries
  • High efficiency design
  • 4S LiPo power capable
  • High-quality 4-pole sintered rotor
  • 4mm gold plated bullet connectors
  • High-quality construction with precision ball bearings and hardened steel 4mm shaft

PRODUCT SPECS

Connector Type
4mm Bullet
Efficiency
86%
Motor Size
3660
Product Length
2.68" (68 mm)
Input Voltage
12 - 25.2V
Part Type
Electronics
RPM/Volt (Kv)
1900Kv
Sensored
No
Motor Design
Inrunner
Application
1/10 scale buggy, truggy or monster trucks with 2S-4S LiPo powered setup
Number of Poles
4
Output
985W (3S)
Product Weight
0.91lbs (416g)
Shaft Diameter
0.157" (4 mm)
Outer Diameter
1.41" (36 mm)
Maximum Continuous Current
60A
Motor Type
Brushless
