Discontinued

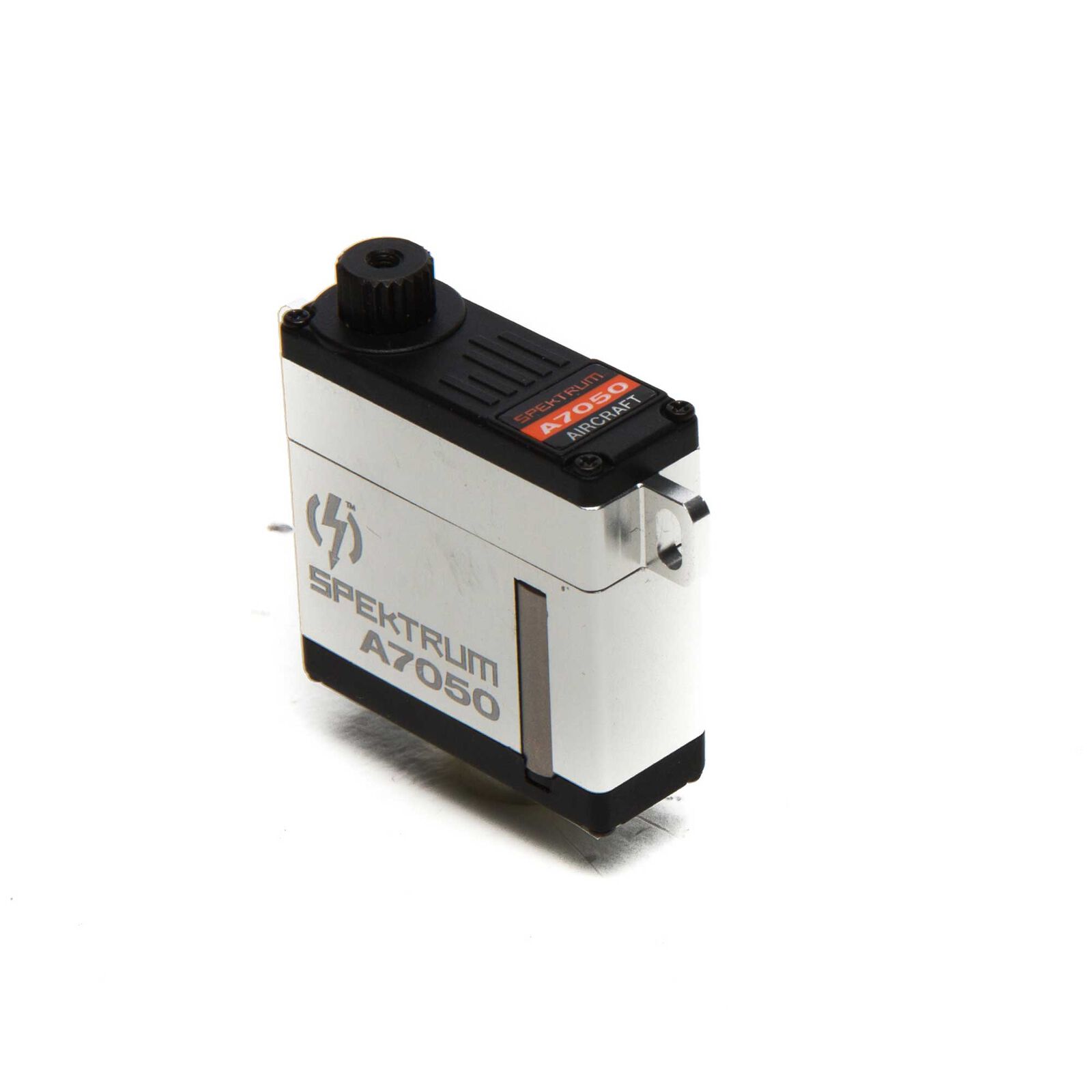

A7050 Thin Digital HV High-Torque Metal Gear Wing Servo

Spektrum - Item No. SPMSA7050
4.3 out of 5 Customer Rating

Key Features

  • • HV (2S Li-Po) compatible
  • Extremely smooth operation
  • Removable servo lead
  • Steel Gears

Overview

Spektrum™ high-voltage servos deliver premium power, precision and durability. All are compatible with 2S Li-Po power inputs and boast a gear train that’s been engineered to exact specifications for tight mesh, low wear and smooth operation.

The A7050 uses this foundation to provide a fantastic blend of torque and speed that will make any model feel more responsive. Its thin servo case is perfectly proportioned for the slender wings of pylon racers and high performance sailplanes. If you need to remove the A7050 for maintenance or inspection, it can be disconnected from its lead so you don't have to re-route wires when you put it back. Standard length leads are included. Shorter or longer lengths are available separately.

PRODUCT SPECS

Servo Operating Voltage
6.0 - 7.4V (HV)
Maximum Servo Torque
45 oz-in (3.2kg-cm) @ 6.0V; 65 oz-in (4.7kg-cm) @ 8.4V
Product Width
0.40 in (10.16mm)
Bearing
Dual
Gear Type
Metal
Product Weight
0.70 oz (20 g)
Input Voltage
4.8V - 8.4V
Product Height
1.06 in (26.92mm)
Servo Type
Digital
Connector Type
Universal
Product Length
1.08 in (27.43mm)
Programmable
No
Servo Size Category
Thin
