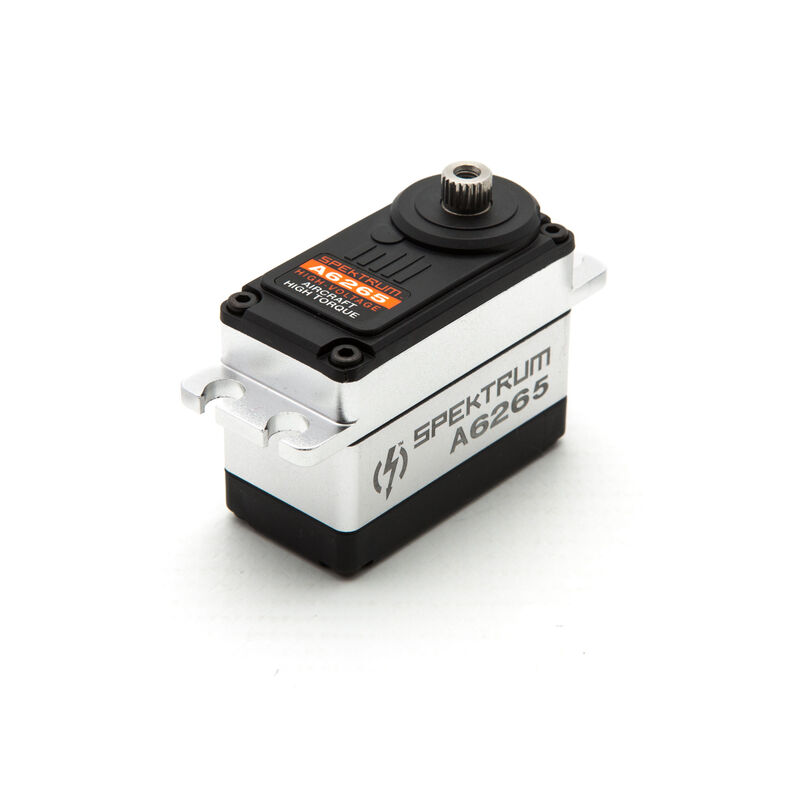

A6265 Standard Digital HV Hi-Torque Metal Gear Aircraft Servo

Spektrum - Item No. SPMSA6265
5 out of 5 Customer Rating
A6310 Standard Digital HV High Torque Brushless Metal Gear Aircraft Servo
A6310 Standard Digital HV High Torque Brushless Metal Gear Aircraft Servo
SPMSA6310
View Alternate Product Details

Overview

HV compatiblity

No regulator needed for HV applications, but still offers outstanding performance at 6V.

High Torque

Offers 448 in-oz of torque for HV applications and 328 in-oz of torque for 6.0V applications while offering impressive speed of .10 sec/60 for HV applications and .15 sec/60 for 6V applications offering the perfect comgination of torque and speed for giant scale models.

High Precision

Offers low deadband, top of the line centering, high resolution, with impressive holding torque for unmatched performance.

Metal Gear Train

Long life (low wear) gear train for great long life performance.

Aluminum center section case

Acts as a heat sink to keep the motor cool which increases performance and life of the servo, and adds high end look and feel.

PRODUCT SPECS

Connector Type
Universal
Product Length
1.61 in (40.9mm)
Maximum Servo Torque
328 oz-in (23.6kg-cm) @ 6.0V; 448 oz-in (32.25kg-cm) @ 8.4V
Bearing
Dual
Bushing Or Bearing
Bearing
Gear Type
Metal
Programmable
No
Servo Size Category
Standard
Application
Giant Scale Airplane
Product Weight
2.20 oz (62g)
Connector Wire Length
11.5 in (292mm)
Product Width
0.82 in (20.9mm)
Type
A6265 HV Digital High Torque Metal Gear Air Servo
Input Voltage
4.8?8.4V (High Voltage)
Product Height
1.25 in (31.8mm)
Servo Type
Digital
