Discontinued

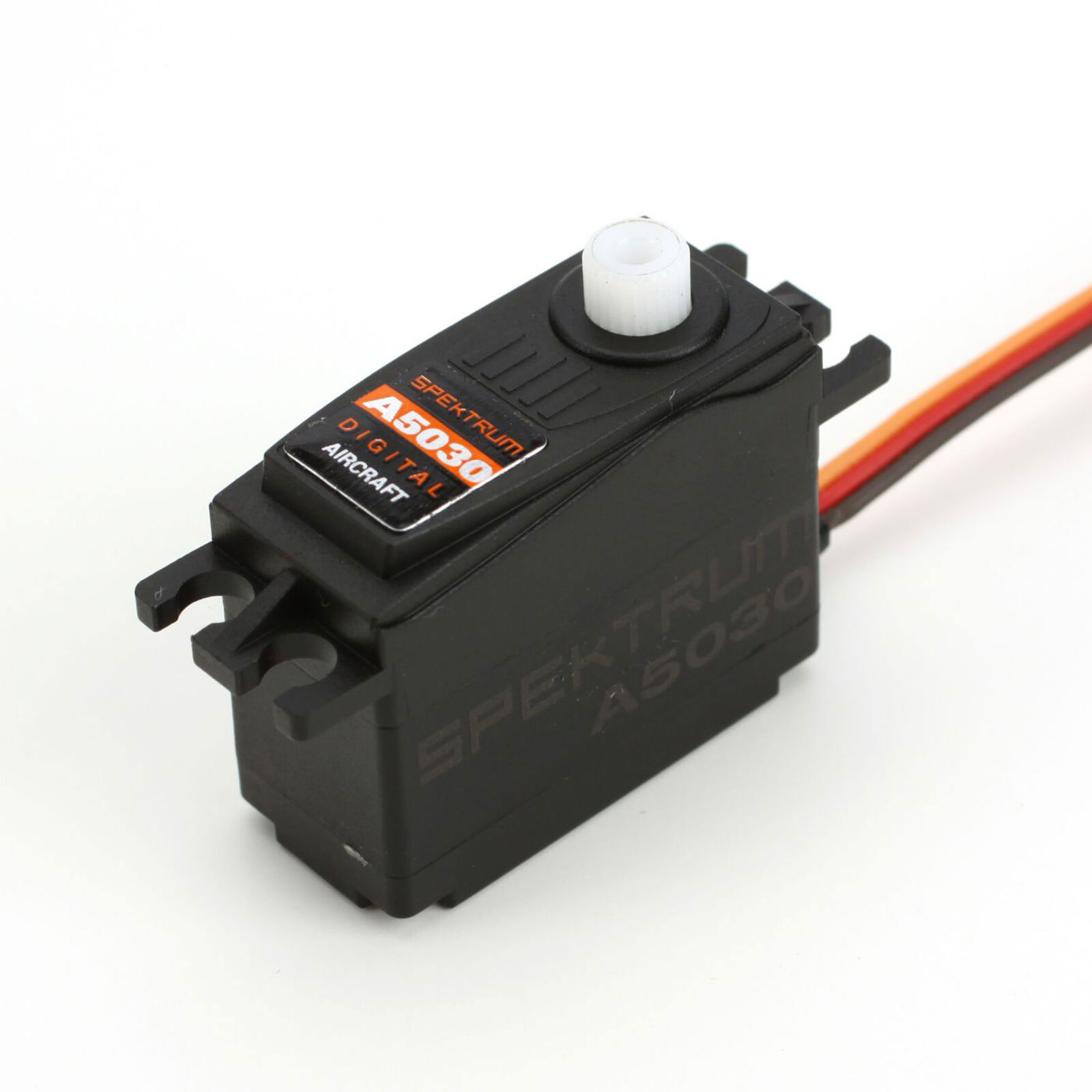

A5030 Mini Digital Aircraft Servo

Spektrum - Item No. SPMSA5030
3.9 out of 5 Customer Rating
A5080 MT/HS Mini Digital HV Servo
A5080 MT/HS Mini Digital HV Servo
SPMSA5080
View Alternate Product Details

Key Features

  • Digital precision and power
  • Low deadband accuracy
  • Dual ball bearing support
  • Plastic Gears
  • Coreless Motor

Overview

 The A5030's lightweight plastic gear train, digital precision and incredible .10 transit time is ideal for 25-32 size aircraft. Aerobatic and 3D aircraft that demand performance need the precision of digital accuracy. This servo is ideal and will last the pilot a long time thanks to its tight nylon gear train.

This mini-class servo is durable enough for either glow or electric power applications. Dual ball-bearing support means there’s less resistance to the high output of the high-speed coreless motor. In all these features mean you can expect great performance and long life.

Detailed Information

Click Here to see Spektrum's Servo Reference Chart

PRODUCT SPECS

Product Height
1.10" (28.0mm)
Servo Type
Digital
Product Length
1.30" (33.0mm)
Programmable
No
Servo Size Category
Mini
Maximum Servo Torque
50 oz-in (3.6 kg-cm) @ 4.8V; 66 oz-in (4.8 kg-cm) @ 6.0V
Product Width
0.58" (15mm)
Servo Operating Voltage
4.8 - 6.0V
Product Weight
0.83 oz (23.6 g)
Bearing
Dual
Bushing Or Bearing
Bearing
Gear Type
Composite
