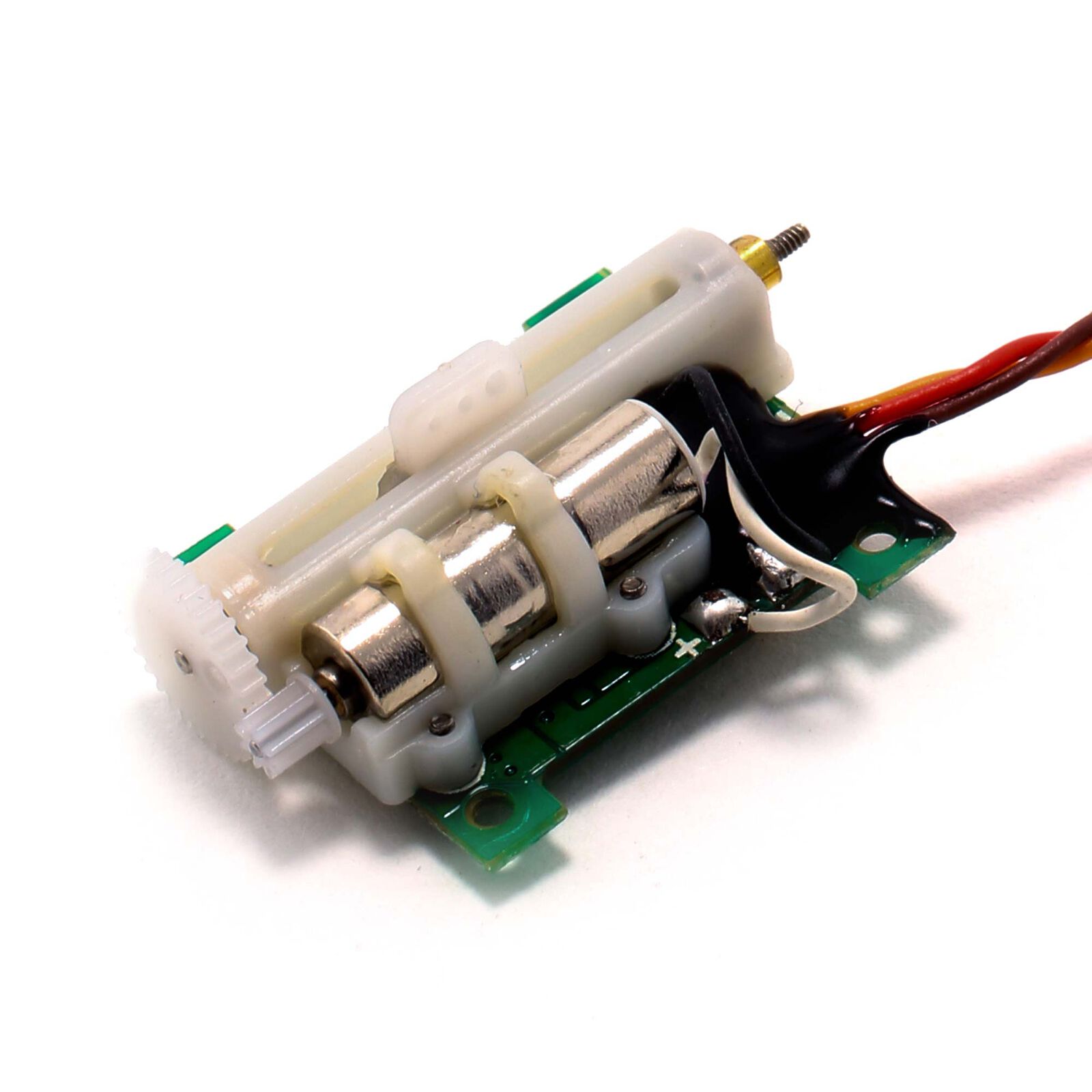

The 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.
Features
- Long throw offset servo is perfect for controlling ailerons on ultra micro models
- Offset provides for built-in differential
- JST-SHR Connector
Detailed Information
Click Here to see Spektrum's Servo Reference Chart
PRODUCT SPECS
Product Width
0.66" (17 mm)
Product Length
0.87" (22 mm)
Connector Type
JST-SHR 1.0 mm
Maximum Servo Speed
0.10 @ 4.2V
Input Voltage
3.2V-4.2V
Product Application
Air
Product Height
0.33" (8 mm)
Servo Type
Analog
Maximum Servo Torque
3.5 oz/in @ 4.2V
Bearing
Single
Bushing Or Bearing
Bearing
Gear Type
Nylon
Programmable
No
Servo Size Category
Ultra Micro
Application
Airplane
Product Weight
0.10oz (2.50g)
Water-Resistant
No
Motor Type
Brushed
Servo Operating Voltage
3.2 - 4.2V
