DX7S

The DX7s transmitter boasts an impressive list of programming features, built-in telemetry and the best ergonomics in its class.

DX7s 7-Ch DSMX Radio System with AR8000 Receiver

SPM7800

$299.99*

*at participating retailers

DX7s 7-Ch DSMX Radio System with AR8000 Receiver

Item #: SPM7800

$299.99*

Retail: $449.99*

Find a Retailer Buy Now *Avaliable at participating retailers

Features

Spektrum AirWare™ Software. Remarkably Easy to Use.

The DX7s is equipped with Spektrum AirWare programming that was developed exclusively by Spektrum from the ground up. It has all the functions an airplane or heli pilot could want, but you don't have to be an expert to use them. The intuitive SimpleScroll™ interface makes navigating menus and changing settings as simple as "roll and click".

Electronic E-Ring

When programming the cyclic and pitch mixing for a helicopter, it is possible for the sum of the two mixing values to exceed the mechanical travel limits of the servos. This can cause them to be overdriven into a locked position. Spektrum AirWare's Electronic E-Ring prevents this by automatically limiting servo travel if the sum of the cyclic and pitch values exceeds servo limits.

Enhanced Wing Type Programming

When selecting a wing type for an airplane, Spektrum AirWare graphically depicts the type you've chosen and will automatically configure the necessary mixes for the pilot. This saves time and reduces the chances for error when programming complex control surface configurations.

Built-In Telemetry. Fly Smarter with Vital Model Feedback.

The DX7s's built-in telemetry feature gives you vital, real-time information about what's happening with your model in flight; information that can prevent crashes and maximize performance. The telemetry data appears in an easy-to-read format on the large LCD screen so you can reference it at a glance. You can also have the DX7s alert you with an audio or vibe alarm whenever any telemetry values exceed limits you define. The DX7s will initially be able to track four key safety and performance factors:

Battery Voltage

The DX7s is equipped with a built-in telemetry feature that gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. And it all appears right on the big LCD screen so you can see it at a glance. Just connect a Spektrum Air Telemetry Module (sold separately) to a compatible DSM2™ or DSMX™ receiver and bind it to your DX7s.

Temperature

Is there enough airflow reaching an electric motor? Is my battery getting too hot? With the DX7s, you will get real-time answers and be able to take action well before damage occurs.

Signal Quality

The telemetry module will keep tabs on the quality of the signal coming to the receiver and send this information back to the DX7s where it is represented on the LCD screen using a familiar "signal bar" scale.

RPM

Pilots can use the RPM telemetry data to check the effectiveness of new mixture settings, new battery packs, or perhaps a new propeller/motor combination. The RPM sensor is sold separately.

Spektrum Data Interface. Share. Expand. Save.

Beyond new software and telemetry, the DX7s is also the first Spektrum radio to introduce the Spektrum Data Interface™. The SDI is designed for use with standard SD memory cards and adds a whole new level of flexibility and ease-of-use. With the SDI, you will be able to:

Share Model Setups

Share setups with other DX7s owners at the field or transfer them from your SD card to your PC and attach them to an e-mail. This makes it easy to gain from the experience of others or help others succeed.

Save More Models to Memory

The DX7s has enough on-board memory for up to 20 models before you even need to think about using the SDI. But with the SDI, memory for thousands of models could be stored on the SD card or transferred to a PC hard drive for backup.

Stay Up to Date

With the Spektrum Data Interface, you won't have to send your DX7s into a service center to get the latest Spektrum AirWare enhancements. You can download them onto your SD card and upload them to the DX7s yourself.

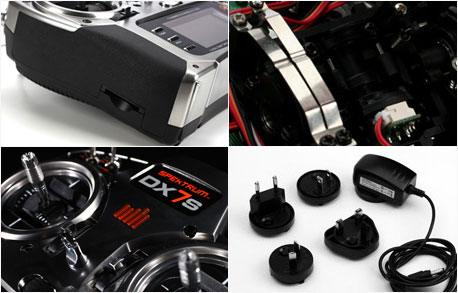

Superior Ergonomics. Made to Fit the Way You Fly.

The weight distribution and ergonomics of the DX7s provides a sense of balance and comfort that perfectly complements the speed and precision of its DSMX™ technology. You simply have to feel it to believe it.

Some of the more impressive ergonomic features include:

  • Comfortable, no-slip rubber grips
  • Adjustable stick length and tension
  • Smooth, quad-bearing gimbals
  • User-adjustable mode configurations (1, 2, 3 or 4)
  • User-assigned switch functions
  • Easy-to-read LCD screen
  • Intuitive SimpleScroll programming interface

Key Features

  • 20-model memory
  • Built-in telemetry
  • Extensive airplane and helicopter programming
  • Throttle-activated timer setting
  • AR8000 high-speed 8-channel receiver
  • Li-Po battery compatibility
  • 8 wing types
  • 5 tail types
  • 3-position flaps with delay and elevator compensation
  • Dual rates and expo
  • Differential
  • 5-point throttle, pitch and tail curves
  • 6 swashplate types
  • 6 programmable mixes
  • Control position warnings
  • Audio and vibe alarm settings
  • Large 126 x 64 LCD screen
  • Mode selection (modes 1, 2, 3, 4)
  • Language select (English, Italian, French, Spanish or German)
  • 4.8V 2000mAh NiMH transmitter battery
  • High-speed 11ms frame rate with 2048 resolution
  • 128MB SD card (included)

Product Specifications

# of Channels:
7
Modulation:
DSM2/DSMX
Band:
2.4GHz
Receiver:
AR8000
Programming Features:
Airplane and Heli
Model Memory:
20
Modes:
Selectable 1, 2, 3 or 4
Transmitter (Tx) Battery Type:
4 Cell 2000mAh Ni-MH
Charger:
International AC Adapter

Overview

Spektrum believes you should expect more from a 7-channel transmitter and the DX7s is proof. Besides advanced DSM2®/DSMX® technology and an impressive list of programming features, it boasts the finest ergonomics in its class. Its balanced weight, silky smooth quad-bearing gimbals and rubber grips provide a sense of comfort and precision that is second to none. The DX7 also features the situational awareness of built-in telemetry, the intuitive SimpleScroll™ programming interface and the clarity of a large LCD screen. And you'll always be up to date with the latest Spektrum™ AirWare™ software thanks to the SD card Spektrum Data Interface.

Spektrum™ AirWare™  Software
The DX7s is equipped with Spektrum AirWare that was developed exclusively by Spektrum from the ground up. It has all the programming functions an airplane or heli pilot could want, but you don’t have to be an expert to use them. The intuitive SimpleScroll interface makes navigating menus and changing settings as simple as “roll and click”. It’s almost like using a mouse. Spektrum AirWare also features exclusive Spektrum innovations you won’t find anywhere else. Innovations that make flying safer and programming easier.

Built-In Telemetry
The DX7s is equipped with a built-in telemetry feature that gives you real-time information on things like your model's battery voltage, engine or motor temperature, airspeed, altitude and more. And it all appears right on the large LCD screen so you can see it at a glance.

Spektrum Data Interface
With the Spektrum Data Interface you can use a standard SD card to share model setups with other DX7s owners, store extra model memory and stay up to date with the latest AirWare releases.

Superior Ergonomics
The weight distribution and ergonomics of the DX7s provides a sense of balance and comfort that perfectly complements the speed and precision of its DSMX technology. You simply have to feel it to believe it.

The DX7s transmitter is not compatible with the Spektrum AR6000/BR6000 receiver.

Always purchase products from a Horizon Hobby, Inc. authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM2, DSMX or Spektrum.

Attention: Horizon Hobby has confirmed that all Spektrum Products being sold by KoKo Technology are counterfeit. We consider it a danger to use these products, waive all liability and will not support any warranty or service in regards to them.

Manuals and Support

Set-Ups

Get aircraft or vehicle set-ups for your transmitter.

Download DX7s Setups

Software Updates

You must register your product to receive updates.

Check for Updates

Articles, Reviews, How-Tos & More

Warranty

1 Authorized Warranty Period (One Year)

What this Warranty Covers:
Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the product purchased (the "Product") will be free from defects in materials and workmanship for a period of 1 years from the date of purchase.

2 Authorized Limited Warranty & Limits of Liability International

What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii) damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, or (vi) Product not compliant with applicable technical regulations.

OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.

Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be that Horizon will, at its option, either (i) service, or (ii) replace, any Product determined by Horizon to be defective. Horizon reserves the right to inspect any and all Product(s) involved in a warranty claim. Service or replacement decisions are at the sole discretion of Horizon. Proof of purchase is required for all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.

Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Horizon exceed the individual price of the Product on which liability is asserted. As Horizon has no control over use, setup, final assembly, modification or misuse, no liability shall be assumed nor accepted for any resulting damage or injury. By the act of use, setup or assembly, the user accepts all resulting liability. If you as the purchaser or user are not prepared to accept the liability associated with the use of the Product, purchaser is advised to return the Product immediately in new and unused condition to the place of purchase.

Law
These terms are governed by Illinois law (without regard to conflict of law principals). This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Horizon reserves the right to change or modify this warranty at any time without notice.


WARRANTY SERVICES

Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty support or service. Once assembly, setup or use of the Product has been started, you must contact your local distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call 877.504.0233 toll free to speak to a Product Support representative.

Inspection or Services
If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request submission process found on our website or call Horizon to obtain a Return Merchandise Authorization (RMA) number. Pack the Product securely using a shipping carton. Please note that original boxes may be included, but are not designed to withstand the rigors of shipping without additional protection. Ship via a carrier that provides tracking and insurance for lost or damaged parcels, as Horizon is not responsible for merchandise until it arrives and is accepted at our facility. An Online Service Request is available at http://www.horizonhobby.com/content/_service-center_render-service-center. If you do not have internet access, please contact Horizon Product Support to obtain a RMA number along with instructions for submitting your product for service. When calling Horizon, you will be asked to provide your complete name, street address, email address and phone number where you can be reached during business hours. When sending product into Horizon, please include your RMA number, a list of the included items, and a brief summary of the problem. A copy of your original sales receipt must be included for warranty consideration. Be sure your name, address, and RMA number are clearly written on the outside of the shipping carton.
NOTICE: Do not ship LiPo batteries to Horizon. If you have any issue with a LiPo battery, please contact the appropriate Horizon Product Support office.

Warranty Requirements
For Warranty consideration, you must include your original sales receipt verifying the proof-of-purchase date. Provided warranty conditions have been met, your Product will be serviced or replaced free of charge. Service or replacement decisions are at the sole discretion of Horizon.

Non-Warranty Service
Should your service not be covered by warranty, service will be completed and payment will be required without notification or estimate of the expense unless the expense exceeds 50% of the retail purchase cost. By submitting the item for service you are agreeing to payment of the service without notification. Service estimates are available upon request. You must include this request with your item submitted for service. Non-warranty service estimates will be billed a minimum of ½ hour of labor. In addition you will be billed for return freight. Horizon accepts money orders and cashier’s checks, as well as Visa, MasterCard, American Express, and Discover cards. By submitting any item to Horizon for service, you are agreeing to Horizon’s Terms and Conditions found on our website http://www.horizonhobby.com/content/_service-center_render-service-center.

ATTENTION: Horizon service is limited to Product compliant in the country of use and ownership. If received, a non-compliant Product will not be serviced. Further, the sender will be responsible for arranging return shipment of the un-serviced Product, through a carrier of the sender’s choice and at the sender’s expense. Horizon will hold non-compliant Product for a period of 60 days from notification, after which it will be discarded.

United States:
Electronics and engines requiring inspection or repair should be shipped to the following address:

Horizon Service Center
4105 Fieldstone Road
Champaign, Illinois 61822

All other Products requiring warranty inspection or repair should be shipped to the following address:

Horizon Product Support
4105 Fieldstone Road
Champaign, Illinois 61822


Please call 877-504-0233 or e-mail us at productsupport@horizonhobby.com with any questions or concerns regarding this product or warranty.

United Kingdom:
Electronics and engines requiring inspection or repair should be shipped to the following address:

Horizon Hobby Limited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS
United Kingdom

Please call +44 (0) 1279 641 097 or e-mail us at sales@horizonhobby.co.uk with any questions or concerns regarding this product or warranty.

Germany:
Electronics and engines requiring inspection or repair should be shipped to the following address:

Horizon Technischer Service
Christian-Junge-Strasse 1
25337 Elmshorn
Germany

Please call +(0) 49 4121 2655 100 or e-mail us at
service@horizonhobby.de with any questions or concerns regarding this product or warranty.

France:
Electronics and engines requiring inspection or repair should be shipped to the following address:

Horizon Hobby SAS
11 Rue Georges Charpak
77127 LIEUSAINT

Please call +33 (0) 1 60 18 34 90 or e-mail us at
infofrance@horizonhobby.com with any questions or concerns regarding this product or warranty.

China:                                                                                           Electronics and engines requiring inspection or repair should be shipped to the following address:

Horizon Hobby – China
Room 506, No. 97 Changshou Rd.
Shanghai, China 200060

Please call +86 (021) 5180 9868 or email us at info@horizonhobby.com.cn with any questions or concerns regarding this product or warranty.







Modified: 11/13/2012
